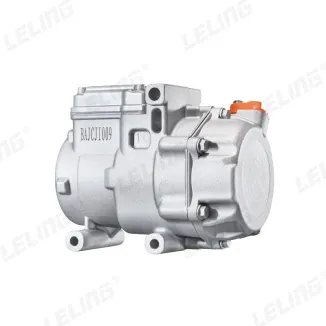

The Ultimate Electric Scroll Compressor: High-Efficiency Cooling for Modern Applications
The 34CC 312V Automotive AC Compressor stands as a cornerstone of modern refrigeration technology, delivering unparalleled performance for automotive, commercial, and energy storage applications. Engineered with precision, this compressor type utilizes advanced scroll plates, motor-driven operation, and intelligent control systems to provide consistent cooling power ranging from 0.8kW to 15kW.
Core Components & Working Principle
An electric scroll compressor comprises:
- Orbiting Scroll Plate (rotating element creating compression chambers)
- Fixed Scroll Plate (stationary element forming crescent-shaped pockets)
- Brushless DC Motor (99% energy efficiency rating)
- Anti-rotation mechanism (prevents orbital movement deviation)
- High-pressure valve system (withstands up to 45 bar discharge pressure)
The refrigeration cycle begins when gaseous refrigerant enters the compression chambers at 30-50 psi. As the orbiting scroll moves eccentrically, chamber volume reduces by 70-80%, increasing refrigerant pressure to 250-300 psi before discharge. This process achieves 40% greater energy efficiency compared to traditional piston compressors.
Technical Specifications & Performance Data
| Model Series |
Displacement |
Voltage Range |
Cooling Capacity |
|---|
| E-14 |
14CC |
12V-800V |
0.8-2.5kW |
| E-34 |
34CC |
96V-540V |
4.5-8kW |
Application-Specific Solutions
Electric Vehicle Thermal Management

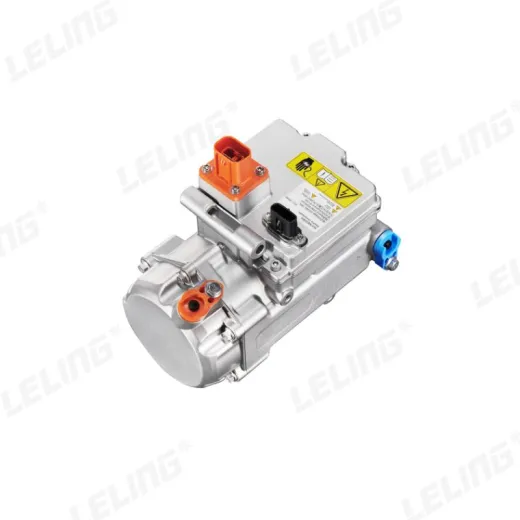

Our 34CC 312V Automotive AC Compressor for EV systems provides:
- Battery cooling at 5-35°C optimal temperature range
- Motor temperature regulation below 65°C
- Cabin cooling within 30 seconds of startup
Commercial Transport Refrigeration
Features of the 34CC 312V Automotive AC Compressor include:
- Continuous operation at ambient temperatures up to 55°C
- Vibration resistance up to 5G acceleration
- IP67-rated protection against dust and moisture
Installation Process Flow
- System Compatibility Check (verify voltage/displacement match)
- Mounting Position Selection (vibration-isolated location)
- Refrigerant Line Connection (torque to 25-30 N·m)
- Electrical Wiring (16AWG minimum for 312V systems)
- Initial Test Run (30-minute no-load operation)
Performance Advantages
Compared to conventional compressors, the 34CC 312V Automotive AC Compressor delivers:
- Energy Efficiency: 35-50% lower power consumption
- Reliability: 20,000+ hour service life
- Precision Control: ±0.5°C temperature accuracy
Global Shipping & Support
All Electric Car AC Compressor include:
- CE/RoHS certification documentation
- Multi-language operation manuals
- 24/7 technical support hotline
For high-demand applications requiring electric compressor solutions with 800V compatibility or custom displacement configurations, contact our engineering team for specialized consultation.
